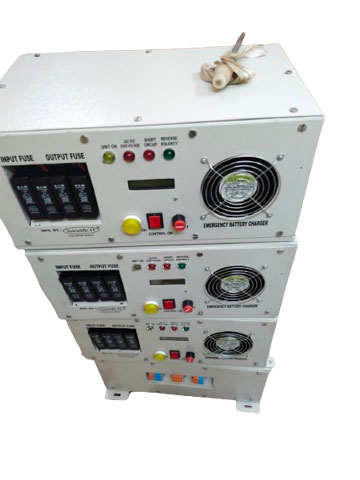

Regulated Battery Charger cum Emergency Battery Charger 2.5 KW
| Description | A DSP controlled IGBT based underslung battery charger with in-built hot standby Emergency Battery Charger for backup |
| Regulated Battery Charger: | |
| Input Voltage | 415V AC, 3-Phase, 50Hz. |
| Output Voltage | 110V - 135V DC ± 2% |
| Nominal Output Power | 2.5 kW |
| Efficiency | >92% |
| Output Voltage Ripple | <2% RMS |
| Application | Battery charging in LHB Coaches |
| Installation | More than 3000 installations in Rolling stock |
| Emergency Battery Charger: | |
| Input Voltage | 240V AC ±15%, 1-Phase, 50Hz. |
| Output Voltage | 110V DC ± 5% |
| Nominal Output Power | 2.5 kW |
| Efficiency | >90% |
| Output Voltage Ripple | <2% RMS |
| Application | Battery Charging in LHB Coaches |
| Installation | More than 2000 installations in Rolling stock. |
Regulated Battery Charger cum Emergency Battery Charger 4.5 KW
| Description | A DSP controlled IGBT based underslung battery charger with in-built hot standby Emergency Battery Charger for backup |
| Regulated Battery Charger: | |
| Input Voltage | 415V AC, 3-Phase, 50Hz. |
| Output Voltage | 110V - 135V DC ± 2% |
| Nominal Output Power | 4.5 kW |
| Efficiency | >92% |
| Output Voltage Ripple | <2% RMS |
| Application | Battery charging in LHB Coaches |
| Installation | More than 3000 installations in Rolling stock |
| Emergency Battery Charger: | |
| Input Voltage | 240V AC ±15%, 1-Phase, 50Hz. |
| Output Voltage | 110V DC ± 5% |
| Nominal Output Power | 2.5 kW |
| Efficiency | >90% |
| Output Voltage Ripple | <2% RMS |
| Application | Battery Charging in LHB Coaches |
| Installation | More than 2000 installations in Rolling stock. |
Regulated Battery Charger - Industrial Battery Charger 6.5 KW
| Description | A DSP controlled IGBT based underslung battery charger with in-built hot standby Emergency Battery Charger for backup |
| Regulated Battery Charger: | |
| Input Voltage | 415V AC, 3-Phase, 50Hz. |
| Output Voltage | 110V - 135V DC ± 2% |
| Nominal Output Power | 6.5 kW |
| Efficiency | >92% |
| Output Voltage Ripple | <2% RMS |
| Application | Battery charging in LHB Coaches |
| Installation | More than 3000 installations in Rolling stock |
| Emergency Battery Charger: | |
| Input Voltage | 240V AC ±15%, 1-Phase, 50Hz. |
| Output Voltage | 110V DC ± 5% |
| Nominal Output Power | 2.5 kW |
| Efficiency | >90% |
| Output Voltage Ripple | <2% RMS |
| Application | Battery Charging in LHB Coaches |
| Installation | More than 2000 installations in Rolling stock. |
Static Battery Charge-Discharger System with Active PFC
| Input Voltage | 415V AC, 3-Phase, 50Hz |
| Output Voltage | 155V / 310V DC current |
| Output Current | 25 Amp / 220 Amp |
| Wattage | 68 KW |
| I/P current THD | <5% |
| Power Factor | Unity during Charging / Discharging |
| Output Voltage ripple | <2% |
| Output Current Ripple | <3% |
| Efficiency | >92% at full load |
| Efficiency | >92% at full load |
| Application | Charging of Coach Battery in workshop / depot / station |
| Installation | More than 500 installations in Rolling stock. |

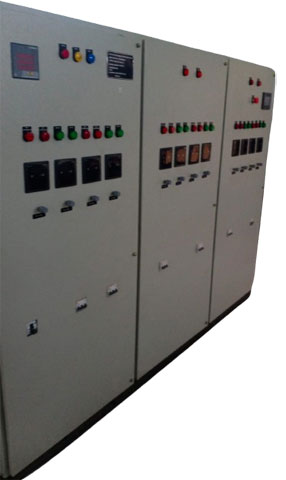

6 in 1 Battery Charger & Discharger Panel
| Description | 6 in 1 Battery Charger & Discharger Panel |
| Input Voltage | 415V /3PH/50Hz. (Nominal 50V DC) |
| Output Voltage | 180V DC |
| Output Current | 0-60A DC |
| Efficiency | >92% at full load |
| Output Voltage ripple | <2% |
| Application | For charging of Loco Battery |
| Installation | More than 02 installations in Rolling stock. |
